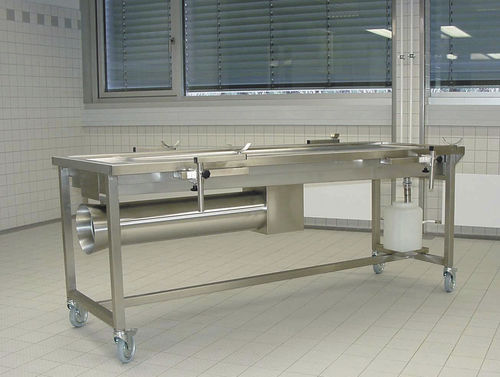

Forensic autopsy table AST 10/700

dissectionmortuary washingon casters

The anatomy autopsy table serves to minimize the formalin charge for students and course participants and is to be connected by an easy plug-in to an exhaust system provided by the customer. The table is completely made of stainless steel (Material no. 1.4301) with a substructure made of sturdy, torsionresistant profiles as well as 4 steerable and lockable wheels. At the small side, a bodytray is inserted, then closed and fixed at the same time by a flap. The upper ridge of the body-tray is situated 10mm lower than the upper ridge of the table. All vapours are reliably down-drafted by a surrounding gap, approximately 10 mm. A collecting tray with stamping to the drain is situated underneath the body-tray. The drain is connected to the collecting container by a bayonet fixing. The exhaust air socket is fixed in the center of the table. The position of the exhaust pipe permits even sedentary work at the table. TECHNICAL DATA Dimensions W/D/H:2180 x 720 x 850 mm Carrying capacity:max. 200 kg Air capacity:min. 750 m³ Exhaust duct diameter:DN 200
