Mortuary cooling unit SP-TKT 100

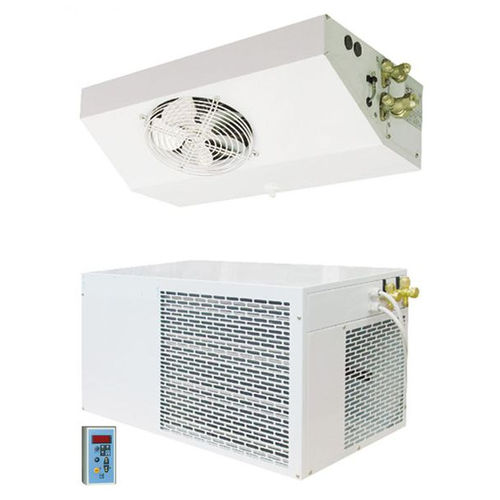

This model consists of a condensing and evaporator unit. The condensing unit has a sturdy housing with low-noise emittance, is fully thermal, and equipped with an air-cooled compressor. The safety utilities are in accordance with EN (DIN) standards, VDE regulations and VBG guidelines. Also included is a high-capacity evaporator with automatic defrosting, electrical temperature regulation and a digital temperature indicator with connection, protective plug and 10 m cable connection to the evaporator. Delivery without copper pipelines. Refrigerant: R 452A Ambient temperature +5°C up to +45°C TECHNICAL DATA Temperature range:-15°C to -25°C Voltage:200 V / 1 Ph / 50 Hz Refrigeration capcity 0°C inside, +40°C outside:1197 Watt Rated Input (when normally running):1100 Watt Reated input:6.6 Amp Peak current:44 Amp Max. current:11.9 Amp Defrost:electric Defrost heaters:880 Watt Weight condensing unit:61 kg Weight evaporator:19 kg Compressor: Type:hermetic Normal power:1300 Watt Condenser: Air flow:1400 m³/h Evaporator: Air flow:1200 m³/h Air throw:4 m (standard / is affected by many factors) Dimensions evaporator W/D/H:1034 x 410 x 215 mm Dimensions condensing unit W/D/H:820 x 427 x 390 mm
