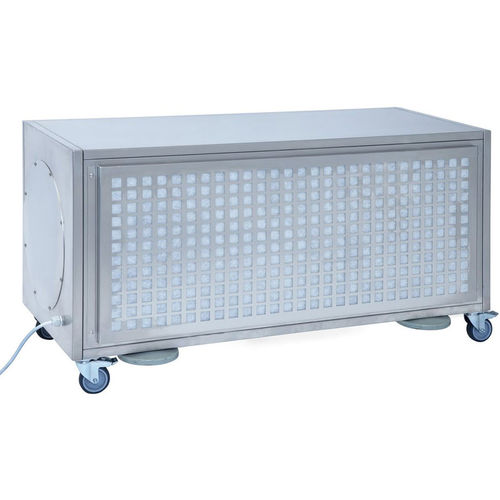

Air filtration system AK-ULS-750-F
activated carbonfor histopathology laboratoriesmobile

Air filtration system - AK-ULS-750-F - KUGEL medical GmbH & Co. KG - activated carbon / for histopathology laboratories / mobile

Air filtration system - AK-ULS-750-F - KUGEL medical GmbH & Co. KG - activated carbon / for histopathology laboratories / mobile - image - 2

Add to favorites

Compare this product

Characteristics

Type of filtration: air, activated carbon
Applications: for histopathology laboratories
Other characteristics: mobile

Description

Mobile Recirculated Active Carbon Air System AK-ULS-750-F Suitable for down-draft grossing tables, consisting of:Solid stainless steel housing with 4 controllable and lockable wheels, access panel at the up front foreasy access to all filters and the exhaust air fan and backside with exhaust air grid and filter fleece. Activated carbon filter with potassium permanganate impregnated, cylindrically form with galvanizedsteel housing: Max. work temperature: +80°C Max. relative humidity: 70% Max. air flow: approx. 750 m³/h Level of noise: approx. 55 db (A) The filter cartridge can be easily replaced through the access panel. TECHNICAL DATA: Speed:2120 1 / min. Voltage:203 V / 50 Hz Power input:128 Watt / 0,55 Amp. incl. continuous speed controler incl. operating hours counter Exhaust duct diameter:DN 246 Dimensions W/D/H:900 x 520 x 630 mm
