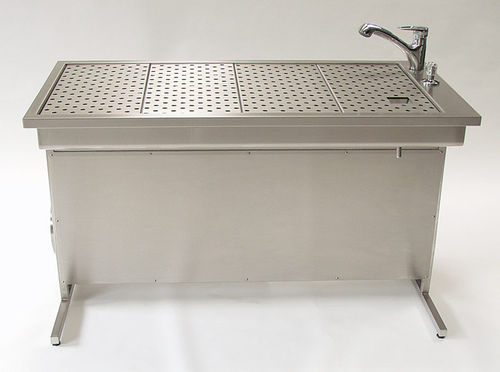

Tissue staining laboratory workstation FT-1250

for sample preparationfloor-standingwith downdraft ventilation

The working table for staining is equipped with air down draft system. This specialized worktable guarantees a laboratory environment free of pollutants while slicing and preparing histological slide preparations, and is even well suited for small dissections. Airflow travels over the entire working area and is vacuumed out downwards, which provides optimal removal of unsanitary vapours. MAC (maximum allowable concentration) values for formalin are below target throughout the entire vacuum-effected area. The cutting table is to be connected to a side-mounted exhaust system. Entire construction is made of stainless steel (material no. 1.4301 – ANSI 304) Stable, self-supporting undercarriage with adjustable legs Low overall height of the upper structure increases leg room Very stable perforated working plates (approx. 10 mm lower than the circumferential edging), perforation D17, T60 Air speed onto the perforated surface: min. 0.4m/sec Integrated connecting pieces with flow rate Regulation Integrated sprinkler system below perforated working plates with regulating valve Connecting pieces for exhaust air with right or left side option Available in different dimensions. TECHNICAL DATA Dimensions W/D/H:1250 x 750 x 750 mm Exhaust Air capacity:Min. 800 m³/h Material:Stainless steel (material no. 14301 - ANSI 304) Perforated working area:approx. 1090 x 670 mm Cold/Warm water connection:1/2" Waste water connection:2" Exhaust duct diameter:200 mm
