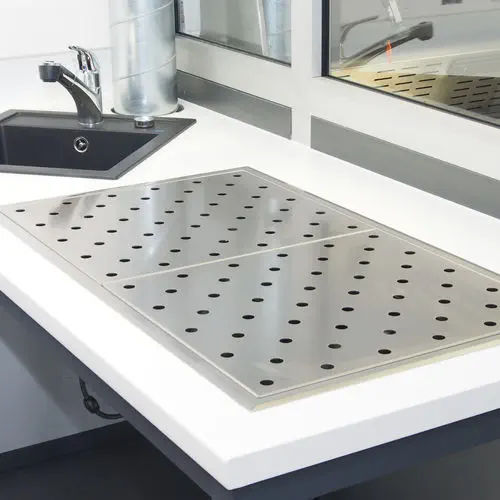

Histopathology laboratory workstation EBA-1500

for sample preparationbenchtopwith downdraft ventilation

This specialized table with exhaustion guarantees a laboratory environment free of pollutants while slicing and preparing histological slide preparations. Airflow travels over the entire working area and is vacuumed out backwards, which provides optimal removal of unsanitary vapours. MAC (Maximum allowable concentration) values for formalin are below target throughout the entire vacuum-effected area. Entire construction is made of stainless steel (material no. 1.4301 – ANSI 304) Very sturdy, perforated working plate made of stainless steel, D17, T60 Exhaust air capacity with the perforated working surface min. 0.4 m/sec Exhaust duct is on the top Available in different dimensions. TECHNICAL DATA Dimensions W/D/H:1500 x 500 mm Exhaust Air capacity:Min. 600 m³/h Material:Stainless steel (material no. 14301 - ANSI 304) Waste water connection:DN 50 Exhaust duct diameter:2x DN 160
