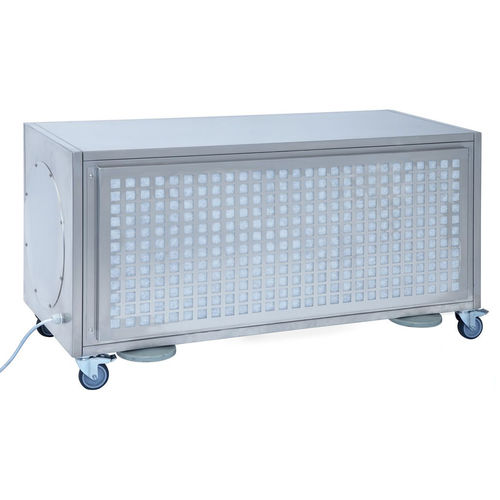

Air filtration system AK-ULS-1000-Factivated carbonfor histopathology laboratoriesmobile
Add to favorites
Compare this product
Characteristics
- Type of filtration
- air, activated carbon
- Applications
- for histopathology laboratories
- Other characteristics
- mobile
Description
Suitable for down-draft grossing tables, consisting of:Solid stainless steel housing with 4 controllable and lockable wheels, access panel at the up front foreasy access to all filters and the exhaust air fan and backside with exhaust air grid and filter fleece.
Activated carbon filter with potassium permanganate impregnated, cylindrically form with galvanizedsteel housing:
Max. work temperature: +80°C
Max. relative humidity: 70%
Max. air flow: approx. 1000 m³/h
Level of noise: approx. 55 db (A)
The filter cartridge can be easily replaced through the access panel.
TECHNICAL DATA
Speed:2120 1 / min.
Voltage:230 V / 50 Hz
Power input:128 Watt / 0,55 Amp.
Exaust duct diamter :DN 246
Dimensions W/D/H:1200 x 520 x 630 mm
