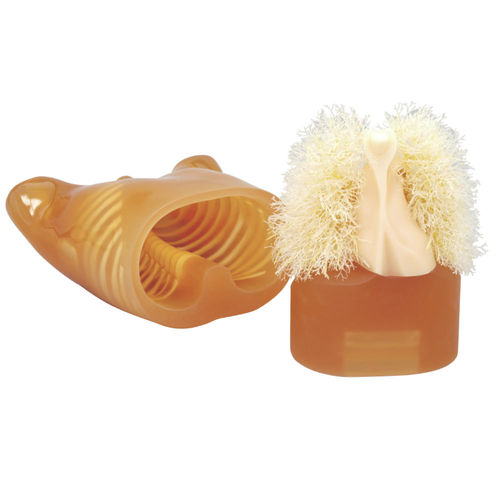

Radiography test phantom N1 "LUNGMAN"

thoraxlung

PH-1 is used in a study by the FDA to create a database of CT scans with different scanners and protocols, as a resource for assessment of lung nodule size estimation method. Features - 1. Radiation absorption and HU number approximate to human body, in an arms-abducted position suits the CT. 2.Simulated tumors and other targets can be attached at any points in the lung fields. 3. Wide variety of uses in interpretation training, anatomical education, evaluation and assessment of devices and other research. Set includes - 1 chest torso / 15 simulated tumors (15 variations 1 piece each) / 1 set of chest plates / 1 set of sample X-ray data (DVD) / manual 1 chest torso / 15 simulated tumors (15 variations 1 piece each) / 1 set of sample X-ray data (DVD) / manual Size (approx.) - W43xH48cm / W16.9xH18.9in chest girth 94cm / 37inch Packing size (approx.) - W63 x D50 x H29cm / W24.8 x D19.7 x H11.4inch Weight (approx.) - 18kg / 39.6lb Packing weight (approx.) - 25kg / 55.1lb Materials - Soft tissue: urethane based resin (density: 1.06) / Synthetic bone: epoxy resin (density: 1.31) / *Phantom has no metal parts or liquid structure
