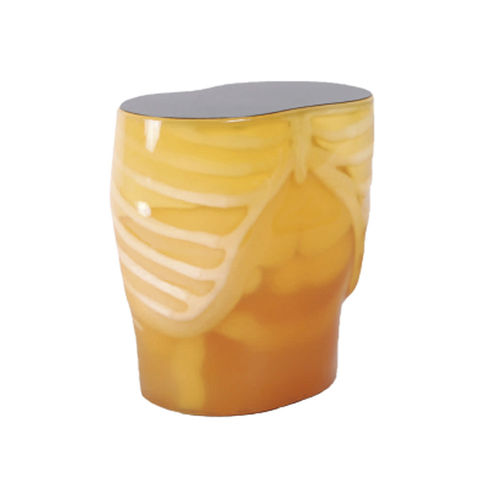

CT scan test phantom PH-5abdomen
Add to favorites
Compare this product
Characteristics
- Type of calibration
- for CT scan
- Area of the body
- abdomen
Description
The phantom facilitates study of image fusion between CT and ultrasound in combination with US-1 Echozy*. New variation for MECT has been added.
Features -
1. Two variation to meet your requirements:
CT type (no contrast enhancement)
MECT type (vessels with 13mgI/ml** iodine and the liver of multi-energy CT compatible material).
**Concentration of iodine can be custom-ordered.
Set includes - 1 abdomen phantom / 1 set of sample X-ray data (DVD) / 1 storage case / manual
Size (approx.) - W27xD16xH30cm / W10.6xD6.3xH11.8in
Packing size (approx.) - W44 x D39 x H42cm / W17.3 x D15.4 x H16.5in
Weight (approx.) - 12kg / 26.4lb
Packing weight (approx.) - 19kg / 42lb
Materials - Soft tissue: urethane based resin (density: 1.06) / Synthetic bone: epoxy resin (density: 1.31)
