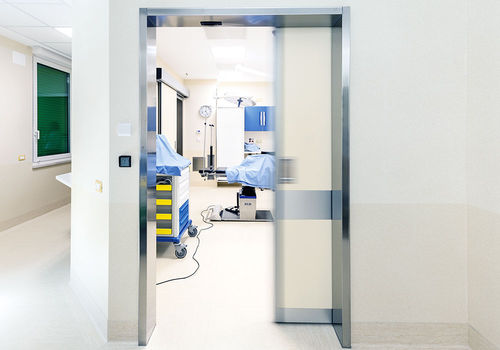

X-ray protection door H-SMITE

hospitalslidingglass

Label hospital doors with panel in HPL, stainless steel, and hermetically sealing glass, feature manual opening and can be completed with accessories such as vision panel, handle, bump band. The hospital door H-SMLTE features a high quality HPL panel available in 125 different finishing colours to support your plans to make the hospital environment a welcoming and elegant place. The door is easily sanitized to simplify the cleaning procedures needed in the healthcare environment. The manual opening of the H-SMLTE1 simple sealing sliding doors can be completed with accessories such as vision panel, handle, bump band. H-SMLTE1 moves horizontally and, when it is nearly closed, the special upper guide allows the lowering and translation of the door both towards the wall and the floor, thereby ensuring the hermetic seal through compression of special rubber gaskets on all four sides of the door. The support trolleys can bear and move a maximum load of 150 kg. Radiology doors The doors with stainless steel and HPL panels can also be provided with lead plates with thickness of 1, 2, 3 or 4 mm for protection from X-rays; the realization depends on the weight of the door after the addition of the lead plate. Slideway transom 125-mm transom, aluminium cover accessible for inspection and ABS side panels Aluminium alloy covering unit, 135x180H mm, with no screws visible on the front view Maximum load capacity of 150 kg Aluminium alloy slideway rail mounted on a sound-dampening polyzene guide The movement is driven by an antistatic rubber timing belt with Kevlar sides. Trolleys with anti-derailment device
