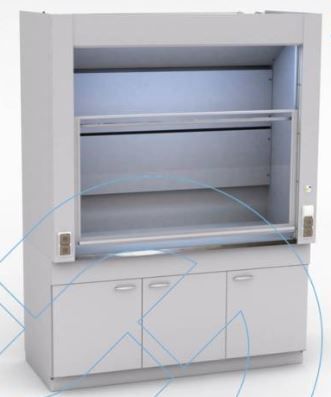

Laboratory fume hood 02-08.733

ventedpolypropylene

• a reliable powder coated metal frame guarantees high reliability of the construction: • light grey powder coated sheet metal; • a counterbalanced lifting sash made of Triplex Safety Glass can be fixed at any height required (50 - 800 mm); • a bypass, reducing airflow in the door with the tap off; • increased visibility of working area (glazing of the working opening to full height); • a 250mm diameter flange for connecting to the ducting system is installed in the upper section of the cabinet; • lighting instrument with 2 fluorescent lamps is installed for illumination • 4 Schuko sockets (220V, with IP55); • circuit breaker 16A with a transparent protective window (IP55); • light and fan switch (optionally); • 1500mm-long electrical cable and Schuko plug; • polypropylene or Durcon drip-cup is installed as a standard at the right; • cold water tap with front panel FAR (Italy); • 1300mm-long flexible polypropylene pipe for waste water connection; • 800mm-long copper pipe for water supply connection; • 'Y' Type strainer; • fan performance1080 m3/h; • 1/2 vented underbench cabinets for the storage of noncorrosive reagents; • left section of the underbench cabinet for the storage corrosives is vented and has a one-piece fiberglass lining; • concealed hinges, placed out of the storage area; • installation of an air flow monitor. • installation of a rod latch lock: • installation of gas/water taps with copper pipework; • installation of an airflow controller; • installation of a sash electric actuator; • installation of a damper with electric actuator; • installation of an airflow variator for fan control.
