Microscope camera 8125518

digitalCMOSLED

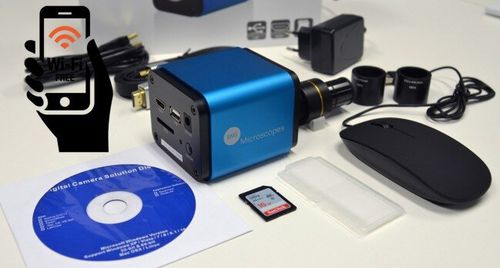

Multiple interfaces (HDMI card multiple interfaces) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI?? are used as the data transfer interface to HDMI display or computer. For HDMI output, The embedded software will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video. For WIFI output, unplug the mouse and plug in the USB WIFI adapter, connect the computer WIFI to the camera, then the video stream can be transfer to computer with the advanced software BMS_pix3. With BMS_pix3, you can control the camera, process the image. HDMI Camera and Microscope - - Normal View - Side View Interface & Button Functions - USB USB Camera or USB Mouse HDMI HDMI Output DC 12 V 12 V Power in SD SD Card Slot ON/OFF Power On/Off Switch LED - Power On Indicator Other Specification for HDMI Output UI Operation - With USB Mouse Image Capture - JPEG Format with 5M Resolution in SD Card(8125518) JPEG Format with 2M Resolution in SD Card(8125518) Video Record - ASF Format 1080P 30fps in SD Card Camera Control Panel - Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control Toolbar - Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function Other Specification for WIFI Output UI Operation - With USB Mouse to Operate on the embedded CamView WIFI Performance - 802.11n 150Mbps; RF Power 20dBm(Maximum) Maximum Connected Devices - 3~6(According to the Environment and Connection Distance) White Balance - Auto White Balance Color Technique
