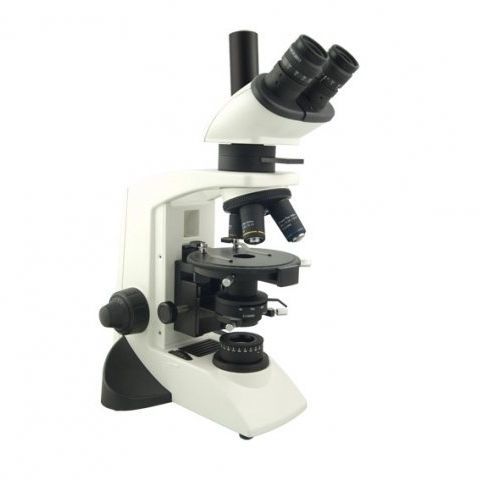

Optical microscope CXL-223 POL

laboratorytrinocularachromatic

Eyepieces: two WF10x/18mm, one with pointer Tubes: trinocular 45º inclined, dioptric compensation on both tubes; third tube for video- or photorecording Head: 360º rotatable Nosepiece: quadruple Objectives: Semi-Plan DIN achromatic 4x, 10x and 40x (spring loaded) Focusing mechanism: coaxial course and fine focussing knobs on both sides Stage: rotatable and round object table with scale Condenser: Abbe condenser N.A. 1,25 in centrable holder, adjustable in height through rack and pinion, with iris diaphragm and filter holder Illumination: built in, adjustable halogen illumination 6V - 20W Magnification: 40x, 100x and 400x Power supply: 90-240V-50Hz Detachable power cord
