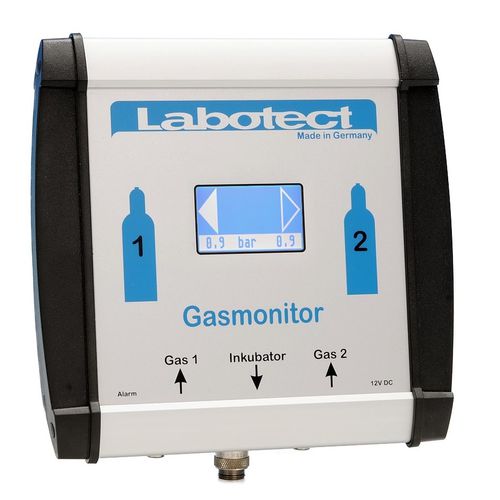

Pressure tester 14782

CO2N2laboratory

Monitors the gas supply and switches over automatically to second cylinder if supply is exhausted Ensures continuous gas supply without interruption Monitoring of gas pressures Optical and acoustical alarm if pressure is too low or too high Graphic display with touch screen Technical data Dimensions 195 x 53 x 181 mm (w x d x h) Pressure range - 0.8 to max. 1.5 bar Alarm threshold and LOW switching point P < 0.3 bar Alarm threshold HIGH - P ≥ 2.0 bar Maximum permitted connection pressure P = 2.0 bar Remote alarm Power supply 12 V by Plug-in power supply 100 - 240 V AC Interfaces RS485 interface for data logging with optional available PC software LaboDat+ Remote alarm Basic Supply Gasmonitor Quick couplers and further connectors Holder for installation at the wall Mains adapter Magnetic signs for labelling of gas cylinder
