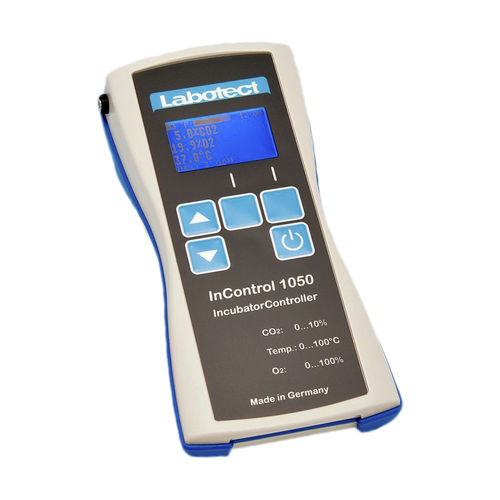

Control analyzer InControl 1050

temperatureO2CO2

Single or continuous measurement in arbitrary intervals Measurement and documentation of multiple incubators Documentation of measurements with date, time and incubator number Easy menu navigation Data-Download via USB; PC software DataVISUAL`09 incl. Continuous operation by Li-Ion battery or mains adapter possible Technical data Case - Plastic (ABS) CO2 measurement - Dual beam infrared sensor Range: 0 - 10 % CO2 Display definition: 0.1 % CO2 Accuracy: 0 - 6 % CO2 ± 0.2 % CO2 6 % - 10 % CO2 ± 0.3 % CO2 Sample volume per measurement (2 min.): approx. 0.8 l Temperature measurement - Platinum temperature sensor PT1000 Range: 0 - 100 °C Display definition: 0.1 °C Accuracy: 20 °C - 50 °C ± 0.2 °C 50 °C - 100 °C ± 0.3 °C O2 measurement - Galvanic sensor Range: 0 - 100 % O2 Display definition: 0.1 % O2 O2 sensor not included Data logger Recording of measurement logging in arbitrary intervals Output of measurements via: backlit LCD PC software Data Visual’09 (via USB data cable) Interval for data logging: 15 - 120 min., adjustable in steps of 5 min. Storage of max. 1008 measurements with date and time Power supply - Rechargeable Li-Ion battery Power supply 100 – 240 V AC, 5 V DC 1.5 A Operation time - Use of rechargeable battery approx. 4 h Time to recharge battery approx. 4 h
