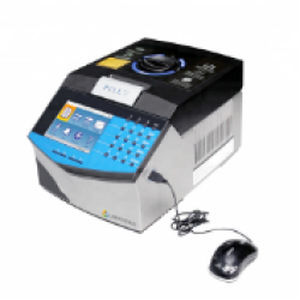

Gradient PCR machine LB-21GPCR

for molecular diagnosticcompactwith touchscreen

Standard gradient PCR machine LB-21GPCR is a Peltier based unit with sealed sample design. Mouse based operation discards traditional push button operation. The homogeneity of sample temperature is detected through 12 channelled temperature probes. The sealed sample design ensures a low temperature preservation and dry cleaning. Independent network connection discards complex operations and inconvenience of rational program updating. It is characterized with a remote-controlled software for diagnosis and data exchange of PCR machine for improved work efficiency. Features High definition LCD screen for visual monitoring of set parameters Module replacement mode Adjustable lid knob for placement of variable tube sizes Data storage memory in case of power down through hard disk Top lid with multiple angle adjustments Multiple control operational access by PC connection Circulation nesting available Anti-corrosive structural unit Applications Used for DNA amplification under gradient temperature system in the fields of genetics, immunology, genotyping, forensic, etc. Specifications Number of wells - 54 Capacity per well - 0.5 mL Operational temperature range - 0 °C ~ 99.9 °C Gradient temperature range - 30 °C ~ 99 °C Gradient speed - 1 °C ~ 30 °C Gradient uniformity - ≤ 0.2 °C Heating and cooling rate range - 0.1 °C / s ~ 4.0 °C / s Maximum heating rate - ≥ 4 °C / s Maximum cooling rate - ≥ 4 °C / s Temperature uniformity - ≤ ± 0.2 °C Temperature accuracy - ≤ ± 0.1 °C Lid temperature - 20 °C ~ 110 °C Maximum number of cycles - 299 Ambient temperature - 5 °C ~ 30 °C Relative humidity - < 90 % Data storage program - 1000 Dimensions - 380 × 270 × 250 mm Weight - 7.8 kgs
