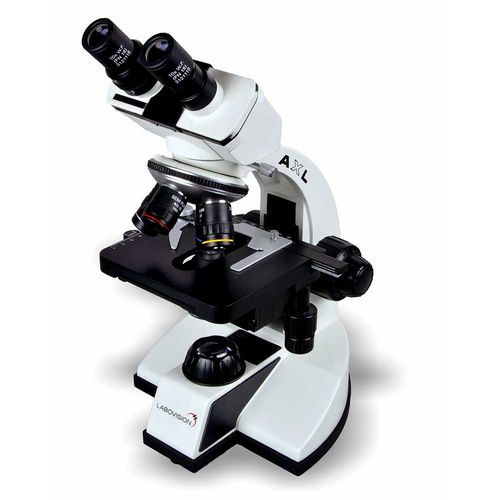

Optical microscope AXL

laboratorybinocularachromatic

Stable & sturdy C shaped stand with well-contoured modular base, corrosion resistant paint and heat resistant pads. Binocular inclined tube inclined at 45° rotatable through 360° with IPD 55-75 mm and Dioptric adjustment. Anti-fungus treated STAND - Stable & sturdy C shaped stand with well-contoured modular base, corrosion resistant paint and heat resistant pads. VIEWING BODIES - Binocular inclined tube inclined at 45° rotatable through 360° with IPD 55-75 mm and Dioptric adjustment. Anti-fungus treated EYEPIECES - Wide Field eyepiece WF 10x/18mm paired NOSEPIECE - Low friction & fully Parfocal Quadruple Revolving nosepiece (Ball bearing type). OBJECTIVES - Achromatic, Anti fungus treated objectives: BJ Semi Plan - 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL, 100x/NA 1.25 SL, Oil MECHANICAL STAGE - Double layer graduated mechanical rectangular stage size 142 x 133mm cross travel 76 (X) x 54 (Y) mm on ball bearing co-axial controls spring clip specimen holder CONDENSER - Moveable ABBE Condenser, NA 1.25 with aspheric lens, Iris diaphragm special day light blue filter in holder FOCUSING MODULE - COAXIAL coarse & fine focusing mechanism, with tension control ring. Ergonomically designed for easy grip, esp. for tension control. ILLUMINATION - Built-in halogen lamp, 6V-20W, with intensity control regulator for luminous field Optional Led with Battery Backup POWER - Power Input 220V AC. Optional Universal Power Supply 110V-240V AC. OPTIONAL ACCESSORIES - Polarizing, Phase Contrast, Dark Field Attachments , 30° Inclined Siedentopf Binocular tubes, 360° rotatable. PACKAGING - Packed in Moulded Styrofoam box with: Operation Manual Cleaning Cloth Dust cover
