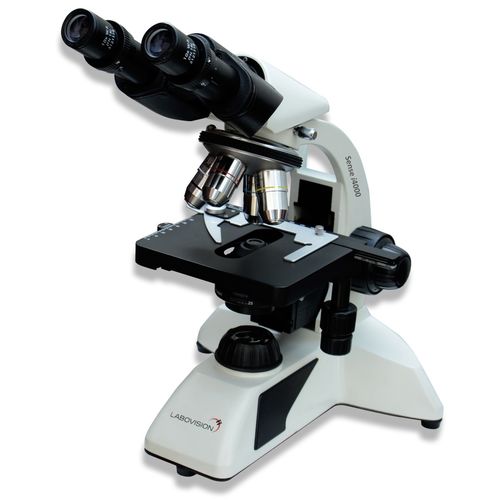

Optical microscope Sense i4000

laboratorybinocularplan achromatic

OPTICAL - Infinity Optical System (IOS) STAND - C shaped, corrosion resistant, anti‐fungal mould treated stand with modular base STAND - C shaped, corrosion resistant, anti‐fungal mould treated stand with modular base VIEWING BODIES - 300 inclined Siedentopf Binocular tube rotatable through 3600, Inter pupillary distance 48‐75mmand dioptric adjustment, anti‐fungal mould treated Anti fungus treated EYEPIECES - Wide field focusable paired eyepiece 10x/22mmwith eye guards, anti‐fungal mold treated OBJECTIVES - Infinity Objectives IP series Full Plan Achromatic objectives, anti‐fungus mold treated 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65(spring loaded), 100x/NA 1.25(spring loaded, oil) MECHANICAL Double layered graduated mechanical rectangular stage size 142 x 133mm, X/Y crosses travel STAGE - Stage range 76 x 54mm co‐axial controls, spring clip, and double specimen holder NOSEPIECE - Quadruple revolving nosepiece with rubber grip CONDENSER - Sub‐stage moveable ABBE condenser, NA 1.25 with aspheric lens. Iris diaphragm ILLUMINATION - Super Bright Kohler White LED illumination with intensity control with intensity control regulator & Battery back‐up FOCUSING - Ergonomic low position co‐axial and fine‐focusing system on ball bearing guideways. Tension adjustment ring
