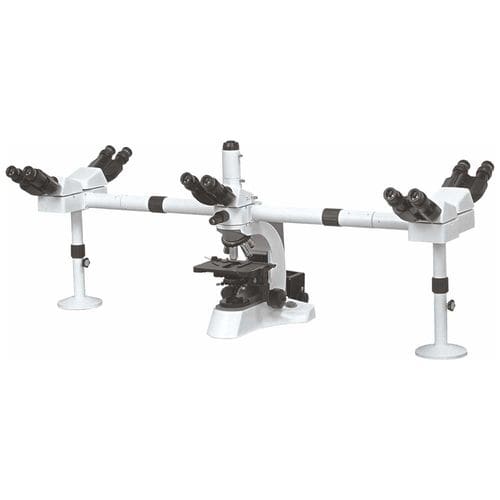

Teaching microscope AXR 51

opticallaboratorytrinocular

Infinity Optical System (10S) with C shaped, corrosion resistant, Anti Fungus treated, single mould modular stand. 30° Inclined Siedentopf Trinocular tube, 360° rotatable, IPD 48-75 mm with dioptric adjustment and 30° Inclined Siedentopf Binocular tubes, 360° rotatable, IPD 48-75 mm with dioptric adjustment, 4 heads OPTICAL SYSTEM - Infinity Optical System (IOS) STAND - C shaped, corrosion resistant, Anti Fungus treated, single mould modular stand VIEWING BODIES - 30° Inclined Siedentopf Trinocular tube, 360° rotatable, IPD 48-75 mm with dioptric adjustment 30° Inclined Siedentopf Binocular tubes, 360° rotatable, IPD 48-75 mm with dioptric adjustment, 4 heads EYEPIECES - WF 10X/20mm with Eye-guards (10 Units) NOSEPIECE - Quintuple, Reversed (Inward Tilt) nosepiece OBJECTIVES - Infinity Objectives, Semi Plan / Full Plan / Phase Plan Achromats 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL, 100x/NA 1.25 SL, Oil MECHANICAL STAGE - Double Plate 185mmx142mm. X-Y travel 75mmx55mm CONDENSER - Swing condenser, with aspheric lens NA 0.9/0.25 & daylight blue filter. FOCUSING MODULE - Ergonomic low position co-axial coarse and fine focusing system on ball bearing guide ways. Tension adjustment ring and unique Focus lock provided ILLUMINATION - External Koehler Illumination,24v-nowHalogen Lamp, Universal Power Supply 100 V to 240 V, AC 50-60 Hertz, CE Compliant. POINTER - Green Electric Pointer Unit, Brightness Adjustable OPTIONAL ACCESSORIES - Flip Top Condenser, Phase Contrast Kit, Dark Field Kit, Green filter, Polarizing kit, Video adapter, Photo adapters for 35mm SLR camera, CCD Camera and Digital Still Camera, 10x Photo eyepiece
