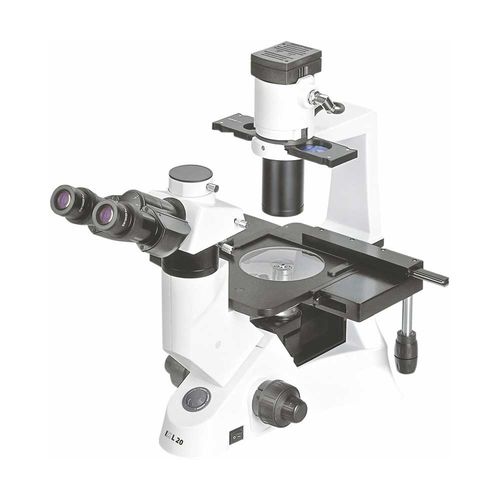

Optical microscope IXL-20

laboratoryinvertedtrinocular

Ergonomically designed sturdy stand of anti rust material. Siedentopf Trinocular, 30° inclined, 360° rotatable, IPD 48-75mm. Wide Field Eye Piece WF 10x/22mm Anti Mould Treated paired STAND - Ergonomically designed sturdy stand of anti rust material VIEWING BODIES - Siedentopf Trinocular, 30° inclined, 360° rotatable, IPD 48-75mm EYEPIECES - Wide Field Eye Piece WF 10x/22mm Anti Mould Treated paired NOSEPIECE - Quintuple Reverse Angle Nosepiece (Ball Bearing Type). OBJECTIVES - IX Series LWD DIN INFINITY PLAN Achromatic Objectives 4x/ NA 0.1 WD18mm, 40x/NA 0.60 WD2.6mm IX Series LWD DIN INFINITY PLAN Achromatic Phase Objectives 10x/ NA 0.25 WD2.6mm, 20x/NA 0.40 WD5.1mm MECHANICAL STAGE - Fixed plain stage 160x250mm with attachable mechanical stage X-Y Coaxial Control, Moving Range 120x78mm Specimen holders Glass Insert, Auxiliary Stages 70x180mm, Terasaki Holder, ф 38mm Petri dish holder, ф 54mm Slide Glass holder CONDENSER - Long working distance condenser NA0.3, LWD72mm suitable for phase contast/BF with 10x-20x, 40x phase Annulus Plate and centering Telescope. FOCUSING SYSTEM - Coaxial Coarse and fine adjustment, Vertical objective movement. Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation FILTERS - Blue, Green and Ground Glass ILLUMINATION - Transmitted Illumination System 6V-30W Halogen with Intensity Control, with Power Supply 220V or 110V, I. Optional LED lamp with Intensity Control, OPTIONAL ACCESSORIES - Image Capture Module with Image Analysis Software, Simple Polarizing Attachment.
