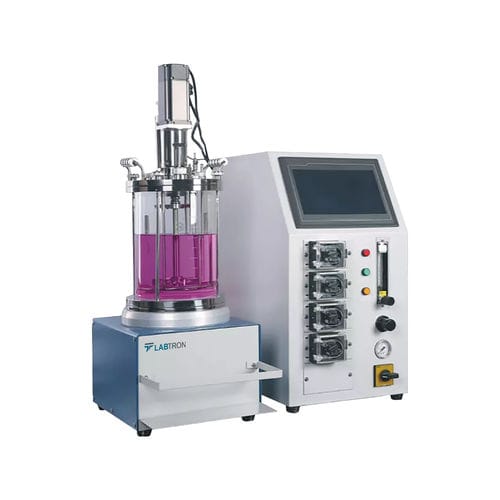

Laboratory bioreactor LGTB-A10

for the pharmaceutical industryfor scientific researchstainless steel

Glass Tank Bioreactor LGTB-A10 offers a 5-liter capacity and operates with a sterilization temperature of 121°C. It features an upper mechanical stirrer with a stainless-steel shaft for stable and precise mixing. Our unit includes an exhaust system with a tail gas discharge condenser and hose connection for efficient operation. The tank is constructed with SUS316L stainless steel and borosilicate glass ensuring durability. It includes an intuitive touch interface for easy operation and control. Specifications Capacity - 5 L Maximum Working Volume - 70% Sterilization temperature range - 100 to 130℃ Sterilization temperature - 121°C Maximum Sterilization temperature - 131℃ Working Pressure - 0.15 Mpa Design Pressure - 0.2 Mpa Sterilization time - 30 minutes at 121°C Tank Material - Stainless steel SUS316 combined with borosilicate glass Diameter-to-height ratio of the tank - About 1:2 Surface Treatment - Internal and external mirror polishing Internal Surface Accuracy - ˂ 0.4 µm to reduce contamination External Surface Accuracy - ˂ 0.6 µm Features High-temperature resistant PTFE filter element 316L stainless steel gas distributor Data recording and analysis function Peristaltic pump with switch control Defoaming blade Stores large data Alarm function for limits Biological process controller Applications Glass Tank Bioreactor is used for precise control of biological and chemical processes, ensuring optimal conditions. It is employed in laboratories, research facilities, and industries. Standard Accessories Four serum supplement bottles Air filter Breathing filter 20meters high quality silicone tube SUS316L feed needle Rubber stoppers O-rings Fuses
