Laser module L-CUBE

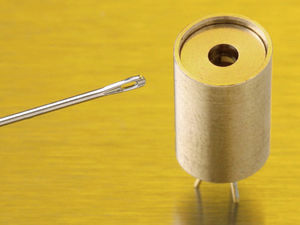

The pulsed laser diode driver is directly integrated into the modules. Description No larger than a matchbook, both the LS and LC series are extremely powerful and adjustable. This makes them particularly well suited for R&D applications. In fact, because even a single module offers so many different control options, the time leading up to product launch can be reduced by a significant margin. The L-CUBE series is new. Similar to the LC and LS series, both the driver and the pulsed laser diode are integrated in a compact cube with an edge length of only 40 mm. The L-CUBE can very easily be mounted in an optical bench or assembly. The LS series is a standard module in which the pulse power, pulse length, and repetition rate are already specified. In the LC series these parameters can be adjusted according to your individual needs. This simply requires a +12V direct current voltage source and a TTL trigger signal. The metal housing is coated with nickel and improves the EMC of and for this module. In addition to the LC and LS series standard PLD modules, OEM versions with fixed parameters and other models are also available.
