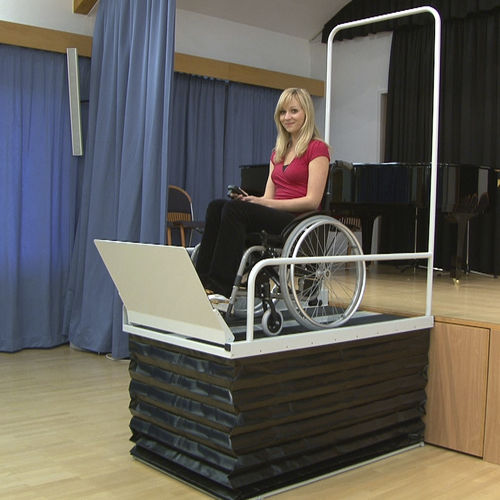

Wheelchair lifting platform Liftboy 1

floor-mounted

the decent platform lift up to 97cm Resistant Can be used both indoors and outdoors Mobile due to lightweight design and transport wheels Available in all desired RAL shades and with many options The Liftboy is the ideal wheelchair lift solution for height differences up to 97 cm. There are 3 different types: Liftboy 1 - lifting height 595mm / 180kg payload Liftboy 2 - lifting height 830mm / 300kg payload Liftboy 3 - lifting height 970mm / 240kg payload Can be used indoors and outdoors Light weight allows easy transport between different locations No fastening to the floor necessary Many different design variants - see 3D configurator and installation pictures below Max. lifting height / Load capacity Liftboy 1: 595mm / 180kg Liftboy 2: 830mm / 300kg Liftboy 3: 970mm / 240kg Side entry at lower level Side exit at upper level Control pillar Radio remote controls Transport wheels Door at upper landing Automatic door opener Contact bars for pit mounting Pillars for remote controls Manual ramp Extended ramp Lifting speed: 10 mm/s Surface treatment: Powder coated in RAL 7035 Optional any RAL colour Optional in stainless steel Net weight: Liftboy 1: 53kg Liftboy 2 and 3: 95kg Power supply: 1x230 V / 24 V Total width: Liftboy 1: 810mm Liftboy 2 and 3: 924mm Total length: Liftboy 1: 1180mm Liftboy 2 and 3: 1505mm
