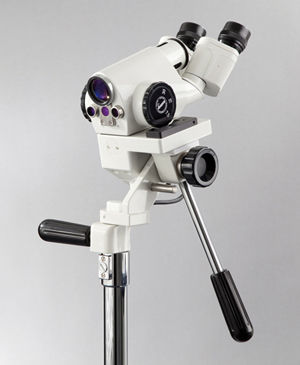

Video colposcope 3MLW LED

trolley-mounted

As for 3ML LED, but with comfortable 45° angled oculars. No green filter! Illumination: White LEDs, 10 W power consumption, intensity of illumination 45.000-52.000 lx, colour temperature 5.700-6.000 K Working distance: 300 mm Beam path: Convergent Eyepieces: 45° angular insight Magnification: 7.5x/15x/30x Field of view diameter: 46/23/11.5 mm Light field diameter: 58 mm Dioptric correction: +7 to -7 diopters Green filter: without green filter Camera interface: Interface to connect with an external camera Horizontal fine adjustment: 40 mm Vertical fine adjustment: 80 mm Colours: standard colour grey white (RAL 9002), custom colours (RAL) available Stands: Upright stand, swing-o-matic stand or balance-o-matic stand Assembly: On roller base or on examination chair Cameras: Video camera, 1.3 MP, USB 2.0 interface; for combination with a video tube, Canon EOS, 18 MegaPixel, USB Hi-speed, video output (PAL/NTSC); for combination with a photo tube Software: MediaWorkStation software pre-installed on touch panel PC; VC-K27 Driver/Viewer Tray: To support the laptop; for swing-o-matic and balance-o-matic stand
