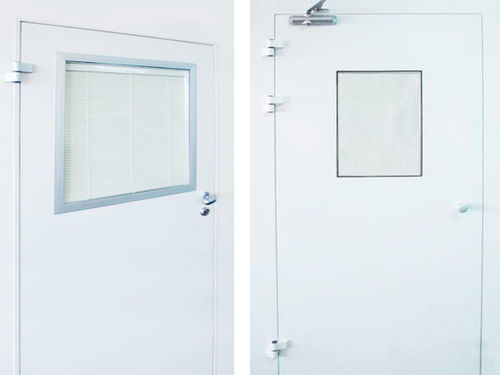

Hospital door

slidingswingstainless steel

1 door frame 2 Door leaf 3 Handles OPTIONS 4 Mounted door closer with lever 5 Mounted door closer with sliding rail 6 Mortise door closer 7 Castle 8 Electromagnetic lock 9 Lock/unlock electromagnetic lock 10 Active infrared electromagnetic lock activation sensor 11 Sealed double-glazed windows made of tempered glass: (400 x 400), (400 x 600), (600 x 600), (600 x 900), (900 x 900), (900 x 1200) installed on silicone or in a sealed aluminum frame 12 Stainless steel bumpers 13 Sealing bottom sill DESCRIPTION The doors in this series are intended for use in healthcare facilities, pharmaceutical production facilities, laboratories and other industries that require classified premises with a controlled environment. The door frame and door leaf are made in the form of a “sandwich” panel. The “sandwich” panel consists of an aluminum frame, two front sheets and an internal filling made of mineral wool with a density of at least 120 kg/m. The front sheets can be made of metal or painted plasticized aluminum, with antibacterial PVC, stainless steel and are treated with disinfectants that do not contain aggressive components and abrasive materials. Doorway height (mm): Dh = 2100. Doorway width (mm): Dbr = 600 ... 1200 (in increments of 100 mm). Door leaf thickness (mm): 52. Doors can open to the right or left, depending on planning decisions.
