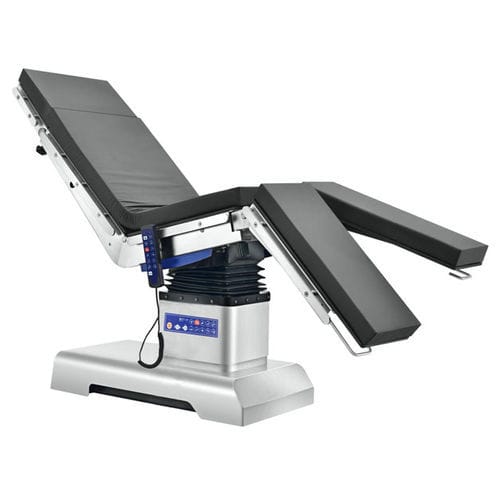

Universal operating table BERLINelectro-hydraulicTrendelenburgadjustable height
Add to favorites
Compare this product
Characteristics
- Applications
- universal
- Operation
- electro-hydraulic
- Features
- Trendelenburg, adjustable height
- Number of sections
- 5-section
- Length
2,050 mm
(80.7 in)- Width
Max.: 570 mm
(22.4 in)Min.: 520 mm
(20.5 in)- Height
Max.: 1,050 mm
(41.34 in)Min.: 700 mm
(27.56 in)- Maximum load
280 kg, 360 kg
(617.29 lb, 793.66 lb)- Mattress thickness
60 mm
(2.4 in)
Description
The Berlin operating table is equipped with the latest high-precision electro-hydraulic system, combined with an intelligent electronic control platform that allows the user to handle the patient safely. Electronic control methods can be integrated into the most common central operating room control system.
Specifications:
Trendelenburg/anti-Trendelenberg ± 30°
Rear adjustment +75° in -35°
Adjustment of lifting body position - /
kidney cushion +120 mm
Head support adjustment + 46 ° to -46 °
Adjusting the leg support
5-section table top + 25° to -90°
Support abduction – 180°
Lateral tilt left/right - 20°
Longitudinal shift - 320 mm - electric
Battery powered -24 V/DC
Mains power – 110-240V, ~ 50/60Hz
