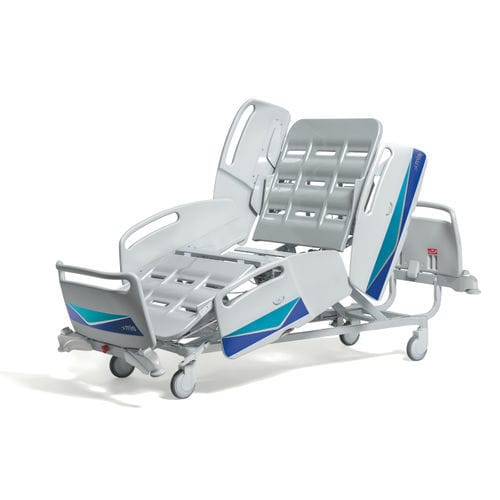

Medical bed LH620

intensive careelectricmechanical

LH620 is an ideal solution for intensive care units, 4-section, which allows you to conveniently carry out medical manipulations and provide high-quality patient care. 3 sections adjustable, 1 central fixed. Removable base with built-in mattress holders. Sliding back. The headboard and top section are equipped with 4 holes for the patient's archwire and vertical IV infusion stand. Steel base complete with central wheel locking system. Retractable bed extension and built-in backup battery. Audible alarm when the bed is unlocked. Safe position indicator with soft lighting function under the bed. The movement of the back section is carried out using an electric drive, equipped with a retractable device that allows you to expand the central area; adjustable movement of the femoral section by means of an electric drive; movement of the foot section by mechanical positioning; altitude change, trendelenburg/anti-trendelenburg movement is performed by two synchronized electric drives. The bed is equipped with two controls: a patient keypad and a console (SUPERVISOR) for use by the operator in the foot section of the bed. Push-button control with IP66 keypad. Control panel: 11-key and 6-functional, with IP66 membrane keyboard on a flexible arm for patient and operator use with the following functions: Two keys to adjust the back section Two buttons for platform height adjustment Two buttons for adjusting the foot section Two keys for synchronized back and hip adjustment Auto reset button Comfortable position (sitting) Light switch under the bed
