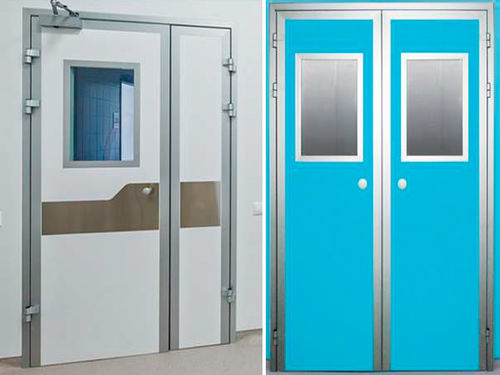

Clean room door Profi

slidingswingstainless steel

1 Door frame 2 Door leaves 3 Handles OPTIONS 4 Hinged door closer with lever 5 Hinged door closer with sliding rail 6 Electromagnetic lock 7 Locking/unlocking the electromagnetic lock 8 Active infrared sensor for activating the electromagnetic lock 9 Sealed double-glazed windows made of tempered glass: (400 x 400), (400 x 600), (600 x 600), (600 x 900), (900 x 900), (900 x 1200) installed on silicone or in sealed aluminum frames 10 Stainless steel bumpers 11 Sealing bottom sill DESCRIPTION The doors of this series are designed for use in healthcare facilities, pharmaceutical manufacturing facilities, laboratories and other industries where classified environments are required. Door leafs are made in the form of "sandwich" panels framed by aluminum profiles. "Sandwich" panel consists of an aluminum frame, two front sheets and internal filling of mineral wool with a density of at least 120kg/m. The front sheets can be made of plasticized painted metal or aluminum, with antibacterial PVC, stainless steel, HPL plastic and are treated with disinfectants that do not contain aggressive components and abrasive materials. Door opening height (mm): Dh = 2100. Door opening width (mm): Dbr = 1000. . . 2400 (in 200 mm increments). Door leaf thickness (mm): 52.
