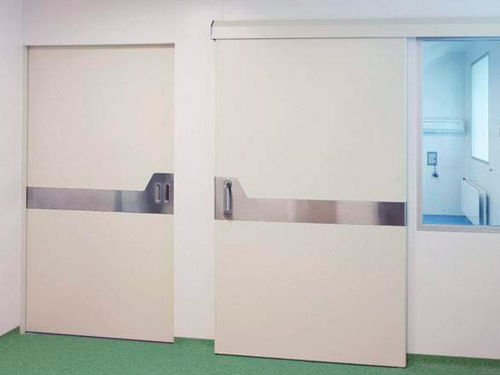

Hospital door Standard

for healthcare facilitiesfor clean roomssliding

1 Door frame 2 Door leaf 3 Upper guide 4 Upper guide casing 5 Lower guide 6 Metal handle OPTIONS 7 Damper-closer 8 Sealed double-glazed window made of tempered glass: (400 x 400), (400 x 600), (600 x 600), (600 x 900), (900 x 900), (900 x 1200) mounted on silicone or sealed aluminum frame 9 Stainless steel bumper Doors of this series are designed for use in healthcare facilities, pharmaceutical industry production facilities, laboratories and other industries. The door leaf is made in the form of a "sandwich" panel. "Sandwich" panel consists of an aluminum frame, two front sheets and internal filling of mineral wool with a density of at least 120kg/m. The front sheets (as well as the door frame and the casing of the upper guide) can be made of metal or plasticized painted aluminum, with antibacterial PVC, stainless steel and treated with disinfectants that do not contain aggressive components and abrasive materials. Thanks to two internal sealed high-precision ball bearings, the compact top track for doors weighing up to 140 kg guarantees trouble-free operation (more than 100,000 cycles) and is quiet. The damper-closer is designed for door leaves weighing up to 80 kg. The doors gently slow down and automatically retract into their final position. Dampers-closers are installed on the door with a width of 600 ... 800 mm, which work only for closing or only for opening. Dampers-closers are installed on the door with a width of 900 ... 1600 mm, which work both for closing and opening. Door opening height (mm): Dh = 2100 . Door opening width (mm): Dbr = 600. . . 1600 (in increments of 100 mm). Door leaf thickness (mm): 32
