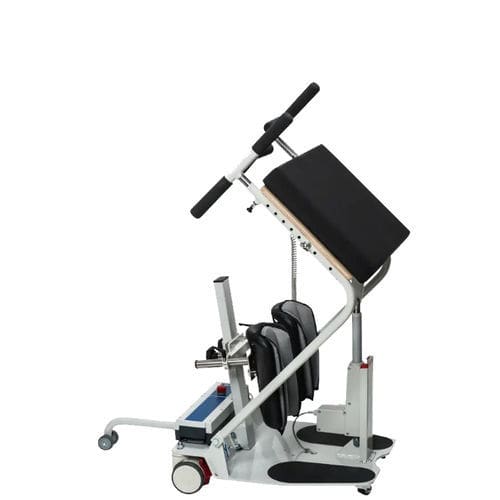

Electric stander LiLLy

on casterswith harnessfolding

Protects the carer’s back– Easy to use – Belt position at the centre of gravity avoids shoulder problems • Upper body supported • Length and direction of handles adjustable • Adjustable sling • Adjustable shin rests • Movable aid Indication Persons with a limited range of motion and limited leg and hip function, which make it difficult or impossible to stand up without assistance. Contraindication Persons who are unable to fully weight bear for a short time despite using handles for both hands, a sling and shin rests. Specifications Electric pulling system 24 VDC / 2,9 A Safety nut and safety brake in case of engine failure. Battery module Battery pack consisting of 2 rechargeable batteries Wall charging unit Separate charging unit powered by mains supply Total height 112 cm Total length 92 cm / handles retracted Width 59 cm Step height 6,5 cm Rear wheels 2 x Ø 100 mm with locking brake Front wheels 3 x Ø 35 mm Weight 33 kg Max. user weight 130 kg
