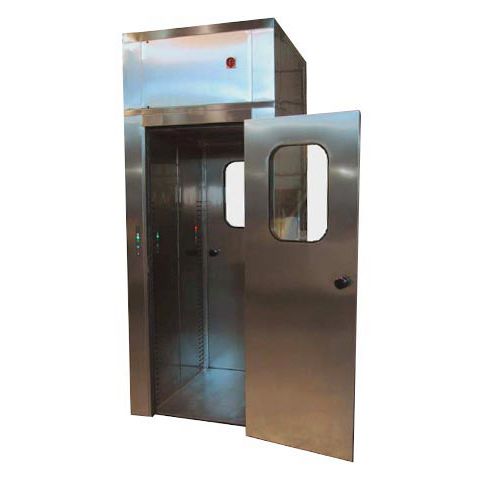

Air shower

for clean roomswith HEPA filter

Air shower is an equipment suitable to be used inside production environments where it is necessary to lpowders or fibres transport during the passage of operators between adjacent rooms. This scope is achieved by means of the operator "air washing", during the transit inside the air shower, made with high speed shoots of HEPA filtered air. Working principle is based on high speed air shoots capability to remove particles from clothes surfaces. HEPA filtration of air before its diffusion inside the Air Shower make it qualified for its use inside Contamination Controlled Environments. Main characteristics: Complete AISI 304 construction Overall standard dimensions : 1100 x 1200 x h 2750 mm Useful standard dimensions : 800 x 1100 x h 2100 mm Feed : 400V / 3F / 50Hz Power : 2,5 kW Contamination Class in “At Rest” condition : ISO 5 (ISO14644) Lighting system Flow management of staff fulfilled with interlocked doors and traffic lights Cycles length settable Emergency unlock pushbutton for doors DOP Test probes Different sizes available
