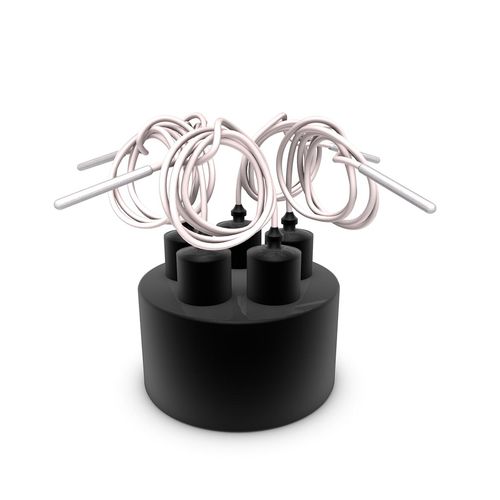

Temperature data-logger GMP RF 5F

laboratoryfor pharmaceutical productssterilization

+ Collects and transmits real time temperature to XpertLog Software + ITS-90 calibration coefficients are stored in the internal memory + Complies with FDA 21 CFR Part 11 + Network ready: multiple users, centralized, server database, active directory authentication + Can be remotely activated Characteristics Sensor type - 5 x 4 wires PT-100 - flexible - 430 mm (17”) - customized - up to 5000 mm (195”) - sensor size - 1.5 x 8 mm (0.06 x 0.315”) - cross section - 1.77 mm² (0.0027 inch²) Resolution - 0.01°C Memory capacity - 32,000 data points / 6400 data points per channel Memory type - non volatile Sampling rate - 2 sec to 24 hours Transmission - simultaneus: maximum 20 loggers sequential: unlimited Internal clock drift - 4 sec / 24 h @ 23°C Mechanical - - material - Peek 1000 - FDA compliant - enclosure - IP-68 - weight - 170 g (6.00 oz) - height - 55 mm (2.17") Power - 2 x Lithium batteries, 0.35 g/each Lithium content classified UN3091 under IATA DGR section 3.9.2.6 compliant with ICAO/IATA packing instructions 970, user replaceable Battery lifetime - Up to 6 months, based on usage Antenna - Internal Wireless range - 121 m (400 feet) Radio frequency - 2.4 Ghz ISM band Access point - USB to computer Programs and reads unlimited number of loggers Calibrations - Factory Calibrations: User Calibrations: - traceable NIST/COFRAC - ITS-90 coefficients stored in the internal memory closed loop calibration using XpertLog® software Standard Calibration Points - • -80°C • 0°C • 140°C Certifications - EMC: Health Safety: RF: - EN 60601-1-2 / 2007 EN 60950-1 / 2006 EN 300440-2 v1.3.1 (2009-03)
