Temperature data-logger TRID30-7 series

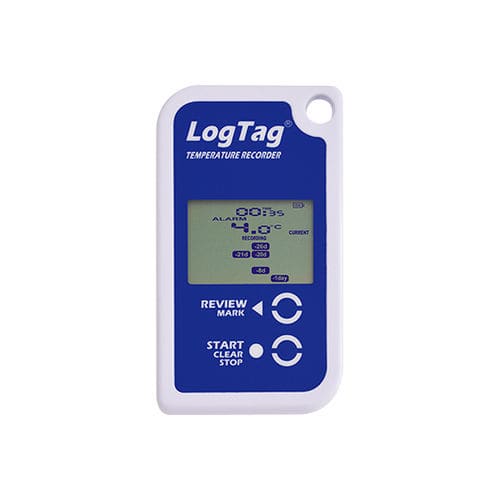

The LogTag® TRID30-7 temperature logger features a display together with a data logging function storing up to 7770 temperature readings. Statistical temperature and duration readings for up to 30 days can be reviewed on the display. During recording, the visual display of the current temperature (of the most recent reading) and previous alarms is an important feature in “static” applications such as cool rooms and refrigerators. The TRID30-7 can also be used in transit applications where direct readout of the statistical data is required without use of a computer or readout device. The display arrangement is designed to show ‘at a glance’ if temperature violations have occurred during the current day and up to the previous 29 days. During recording, the display also shows the current temperature (of the most recent reading), the current time, recording status and battery status. Details of any excursions can be checked directly by inspecting the statistics history on the loggers display or in more detail by downloading the logged data. If a reading outside the pre-set “Alarm” limits is recorded at any time, a “day alarm indicator” appears on the display. Real Time Clock Built-in real time clock Connection Interface Interface Cradle Software LogTag® Analyzer Size 93mm(H) x 54.5mm(W) x 8.6mm(T) Weight 41g 43g Case Material Polycarbonate Download Time Typically less than 5 seconds for full memory (7,770 readings), depending on computer or readout device used Environmental IP65 (roughly equivalent to NEMA 4) when vertically mounted or hung
