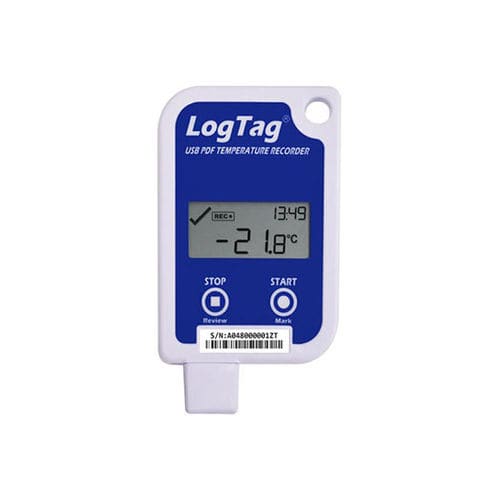

Temperature data-logger UTRED-16F

for pharmaceutical productsfor cold chain monitoringUSB

Display showing temperature and alarm status of up to six alarms. ST100 probe is a mandatory accessory for the UTRED-16F to operate correctly. Cost effective multi-use format with a two year battery life. Automatic generation of a PDF report as a permanent record of the data. UTRED-16 CDC / VFC Kit available. Overview The LogTag® UTRED-16 is compatible with all external probes from the ST100 range, and the extension cable, however, is a mandatory accessory for it to operate correctly. The display shows recording status, current temperature, alarm status of up to six user-configurable alarms and duration of any temperature excursions. When the UTRED-16 is connected to a computer using the integrated USB plug, a detailed PDF report of the recorded temperature data and alarms can be automatically generated without the need for extra accessories and proprietary software. For more detailed data analysis, the UTRED-16 also creates an encrypted data file compatible with LogTag Analyzer® operating software and data management options. Environmental IP61 (when vertically mounted or hung with USB dust-cap in place) Power Source CR2450 3V LiMnO2 (Fixed battery) Battery Life 1 year storage, 2 years of normal use (based on 15 minute logging, download data monthly) Real Time Clock Built-in real time clock Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day) Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C) Connection Interface USB 2.0, A-type plug Software PDF Reader, LogTag® Analyzer 3.1.9 or higher PDF Report One page report with trip and alarm summary. Multi-page report with list of readings, including date and time
