Temperature data-logger UTRED30-16

for pharmaceutical productsfor cold chain monitoringwith probe

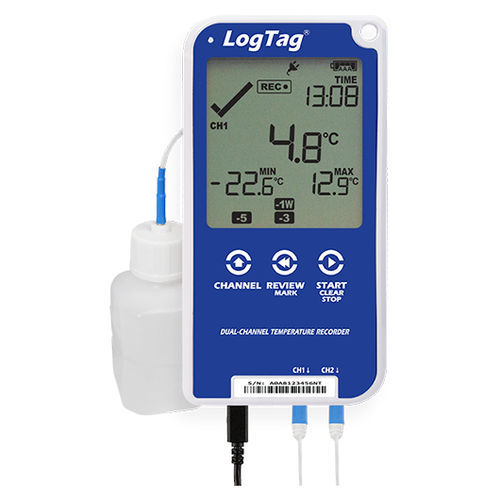

The LogTag® UTRED30-16 Dual-Channel Temperature Recorder measures and stores up to a total 32,000 temperature readings, 16,000 readings per channel. It features a large easy-to-read display and is designed to show ‘at a glance’ if temperature excursions have occurred during the current day and up to the previous 29 days. The alarm is triggered if temperature readings are outside pre-set alarm limits which is indicated by a large X on the display and, if configured, the audible alarm will sound. Specifications Operating Temperature Range -30°C to +60°C (-22°F to +140°F) 0 – 99 % RH (non-condensing) Storage Temperature Range -10°C to +40°C (32°F to +104°F) Logging Start Options Push button start or specific date & time. Optional start delay Download Time Typically with full memory (32,000 readings) in less than 20 seconds Enviromental IP61 (when vertically mounted or hung with USB dust-cap in place) Power Source 5V via micro USB socket or 2 x 1.5V AAA batteries CR2032 LiMnO2 coin cell (backup logging function only) Battery Life AAA battery up to 12 months – if unit is operated without power supply Real Time Clock Built-in real time clock Typical accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day) Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C) Connection Interface USB 2.0 / Micro USB Socket Standard Remote Probe Cable Lengths Standard: 1.5m (4’11”) Extended: 3m (9’10”) (recommended maximum) Remote Probe Cable Type PTFE (FDA food contact rated) coaxial Size 141mm(H) x 72mm(W) x 18mm(T) Weight 156g with AAA batteries, (132g – excluding probe and AAA batteries) Case Material Polycarbonate
