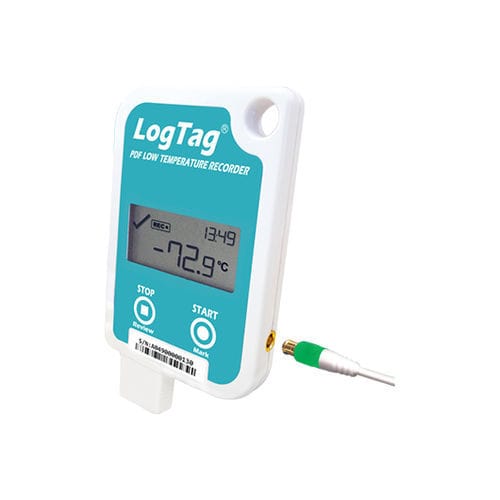

Temperature data-logger UTREL-16

for pharmaceutical productsfor cold chain monitoringUSB

The LogTag® UTREL-16F is compatible with the ST10 external probe. The display shows recording status, current temperature, alarm status of up to six user-configurable alarms and duration of any temperature excursions. When the UTREL-16F is connected to a computer using the integrated USB plug, a detailed PDF report of the recorded temperature data and alarms can be automatically generated without the need for extra accessories and proprietary software. For more detailed data analysis, the UTREL-16F also creates an encrypted data file compatible with LogTag Analyzer® operating software and data management options. Sampling Interval Configurable from 30 seconds to 18 hours Logging Start Options Push button start or specific date & time. Optional start delay Alarms Three configurable upper and three configurable lower alarms Recording Indication “REC” symbol on LCD Download Time Typically with full memory (16,129 readings) in less than 30 seconds from time of insertion to availability of PDF report Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer (if configured) Environmental IP61 (when vertically mounted or hung with USB dust-cap in place) Power Source CR2450 3V LiMnO2 (Fixed battery) Battery Life Storage life of 1 year before ‘start’ (if it is hibernation mode), followed by: 2 years of normal use (based on 15 minute logging, download data monthly) Real Time Clock Built-in real time clock Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day) Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C) Connection Interface USB 2.0, A-type plug
