Laboratory software LPMS-Control

for controlcalibration

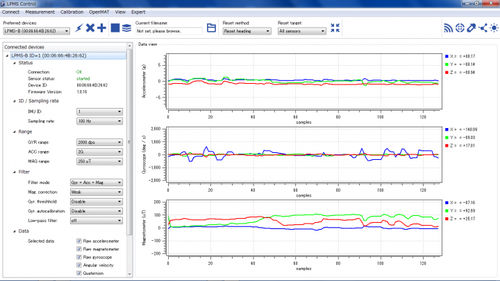

All LP-RESEARCH sensor devices are delivered with a software package. The software package contains the LPMS-Control application for general control of the sensors and a programming library for users to implement their own applications communicating with the sensor. Overview The LPMS-Control application allows users to control various aspects of an LPMS device. In particular the application has the following core functionality: Lists all LPMS devices connected to the system. Connects to up to 256 sensors simultaneously. Multiple connection interfaces (Bluetooth, CAN bus etc.) can be used at the same time. Adjusts all sensor parameters (sensor range etc.). Sets orientation offsets. Initiates accelerometer, gyroscope and magnetometer calibration. Displays the acquired data in real-time either as line graphs or a 3D image. Records data from the sensors to a CSV data file. Plays back data from a previously recorded CSV file. Uploads new firmware and in-application-programming software to the sensor. Data Visualization The screenshots below illustrate some of the functionality of the LPMS-Control software.
