Three-axis micromanipulator LN Junior

stereotactic

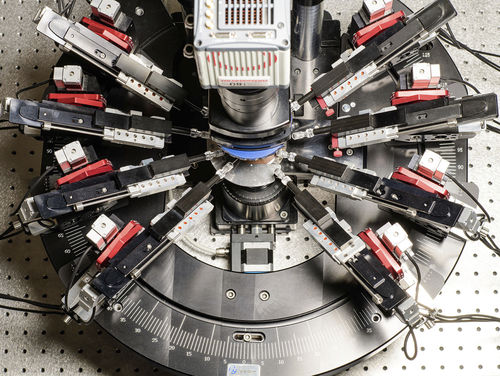

The LN Junior Unit is suitable for InVivo and InVitro applications. The Unit can be mounted directly onto stereotaxis frames, breadboards, columns, or our T-Slot system of the Multipatch Platform. Three or four Junior axes are linked together to form the entire unit. The unit’s design combines flexibility with stability, high resolution, and drift freedom. The x-axis patch angle can be adjusted steplessly. All mechanical components are equipped with earthing sockets. Up to 12 LN Junior Multipatch units can be placed onto the Multipatch system. Turn- or back-fold adapters are not required when using our fast exchange system. Different versions are available with 8 mm, 16 mm, 23 mm, and 28 mm of range. That allows you to assemble the Unit depending on your needs. Specs: Travel in XYZ: 23 mm (standard) Motor resolution: 3,9 nm Reproducibility: less than 1 micron Weight (complete Unit): from 0,7 kg Spindel lead: 0,4 mm Smallest reproducible step: 20 nm
