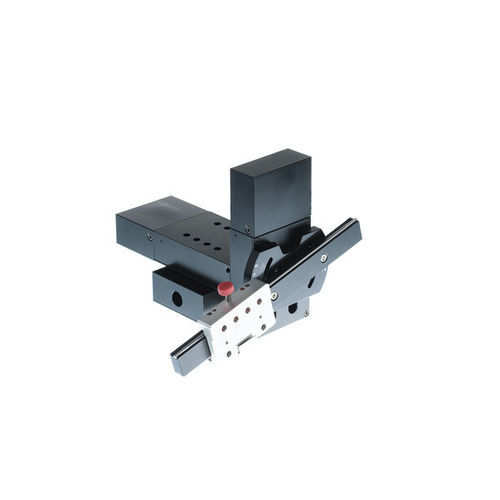

Three-axis micromanipulator

By disassembling parts of the LN Junior, we were able to develop a cost-effective manipulator with the same stability, reliability, and resolution as the LN Junior itself. The main difference between Junior and Junior Compact is the alternative patch-angle. With the Junior, you can physically change the angle. The Junior Compact is built with three orthogonal axes and the patch axis is generated as a virtual movement. Because of these changes, we are able to offer the same mechanical quality at a lower price. Specs: Travel in XYZ: 23 mm Motor resolution: 3,9 nm Reproducibility: less than 1 µm Weight (complete Unit): 860 g (with cables 1 kg) Spindel lead: 0,4 mm Smallest reproducible step: 20 nm
