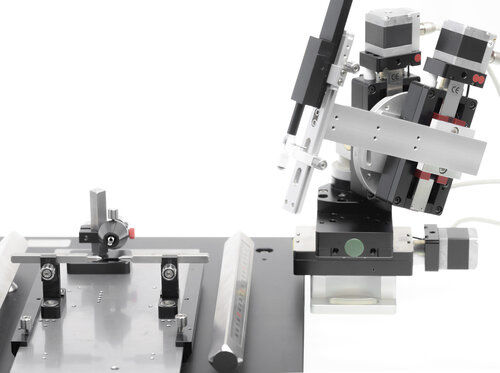

Three-axis micromanipulator Mini

4-axis

The robust construction and wider body of the Mini Compact enable the device to hold and move heavy accessories such as drills, heavy headstages, or even custom-made accessories. This manipulator can also be operated coarsely, thanks to its robust design while maintaining well-known LN accuracy. The device can be mounted directly onto our round column system, V540 Stage, or directly onto the Antivibration table. The device may also be mounted on a horizontal bar, allowing access from the top of the test area. Specs: Travel in XYZ, Z2: 25 mm, optional axial Z2 axis with 55 mm Motor resolution: 4,8 nm Reproducibility: less than 1 micron Weight (complete Unit): 3 kg (4 axes) Spindel lead: 0,5 mm Smallest reproducible step: 20 nm
