Microscope slide table V240

electriccompact

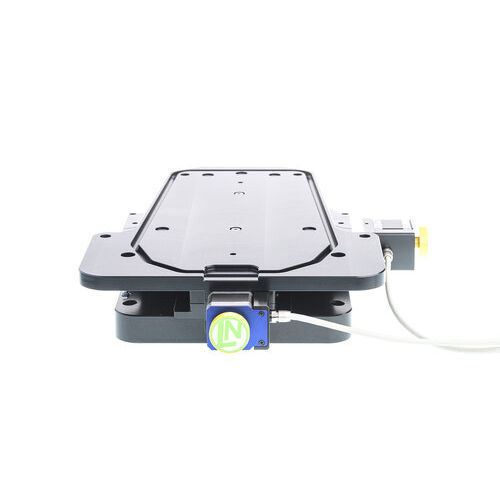

The V240 XY shifting table is mounted directly underneath the microscope. The placement of the V240 allows it to be used with both upright and inverted microscopes. The drain protects against serious damage caused by medium spillage. The V240 can be placed directly on an AV table or, if desired, on a base plate. The latter solution has a U-shaped groove that can be used to position manipulator units around the chamber. This is ideal for electrophysiology experiments in which the stability of the Manipulator/Chamber system is the primary focus. A treadmill or mobile home cage can be positioned under the InVivo 2-Photon microscope in a variety of ways. The newly designed, even more, compact 240 XY shifting table for our LNscope combines a more compact and thinner design. As a result, we are able to provide you with a one-of-a-kind solution for our LNscope. Shifting Table V240 XY for LNscope, Treadmill, or mobile home cage mount. Other versions on request. The columns of our LNscope will be directly mounted into this unique shifting table for an ultra-compact and stable design. Specs: Travel in XY: - 25 mm Motor resolution : 2.5 mm Reproducibility : less than 1 micron Weight: 14 kg (incl. adapter plate), new design: 7,5 kg Dimensions:456 x 343 x 83 mm Spindle lead: - 0,5 - mm
