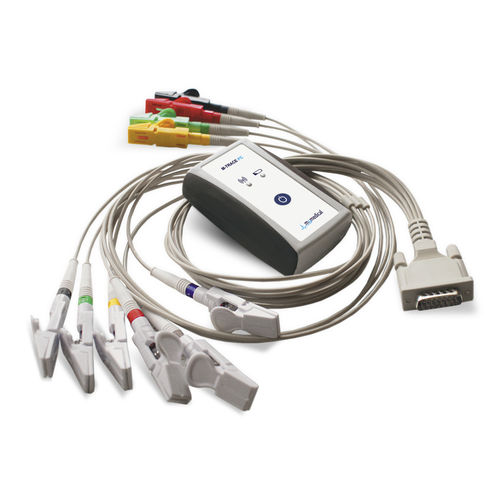

Resting electrocardiograph M-TRACE PC12-channelcomputer-based
Add to favorites
Compare this product
Characteristics
- Applications
- resting
- Number of channels
- 12-channel
- Technology
- computer-based
Description
Digital filtration: 25,35,50,60 Hz
Detection of stimulator impulses
Automatic regulation of isoelectric line
Signalization of wrong connection with particular electrodes
CMMR: >100dB
Sampling frequency: 1000Hz
A/C Converter: 24 bit
Input impedance: >10 MΩ
Range of steering: 30mVpp
Passing band: 0,05-150 Hz
Input channels: klasy CF zabezpieczone przed defibrylacją
Interface: BLUETOOTH
Power : 3V DC (2 x AA)
Fulfilled sstandards: EN 60601-1, EN 60601-1-2, EN 60601-2-25, EN 60601-2-51
Dimensions: 95 x 64 x 28 mm
Weight: <100g
