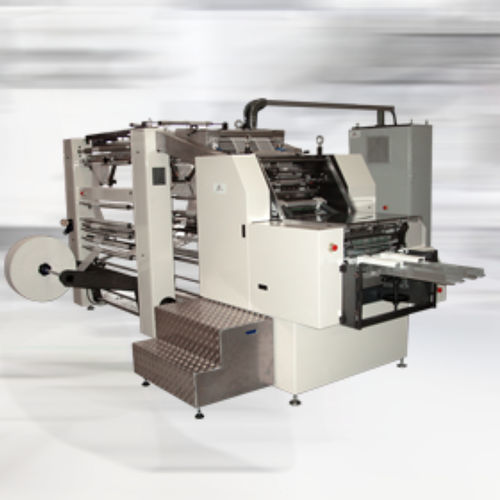

Pharmaceutical product production machine MCA4 BR450

automatic

This machine automatically folds cotton gauze compresses and then stacks them in outlet channels where they are counted. The MCA4 BR450 is available in the multiformat and monoformat models. Useful width - 44 cm Number of tracks - Maximum 2 (varies according to the size of compresses) Sizes - Minimum dimension of compresses: 5 cm x 5 cm Maximum dimension of compresses: 10 cm x 20 cm (16 plies) All the usual or intermediate sizes can be produced on the machine by simple adjustments. Number of plies - 8 – 12 – 16 – 20 – 24 plies (28 – 32 according to format) Folding - The conventional folding is the 5-fold “Surgical”, or “American” type, with edges and corners tucked-in, however by offsetting folds other combinations are possible. Stacking - Stacking is carried out in the channels where the compresses are counted and ready to be manually inserted into paper bags.
