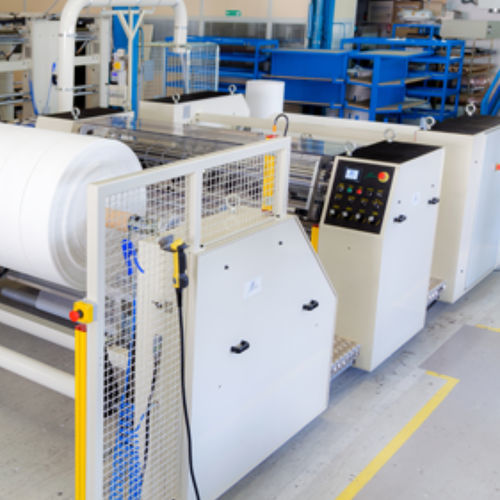

Pharmaceutical product production machine MRT4

automatic

This machine is designed to slit rolls of gauze into various widths. The material cut is wound into strips onto cardboard tubes. Excellent quality strips are obtained by a system of wheels which crush the slit edges. The selvedges are sucked into a box. Expanding shafts ensure optimum hold of the rolls. Useful width - 160 cm Number of cuts - 10 moving cutters Number of Crushing wheels - 10 mobile wheels Continuously adjustable unwinding speed - 0 to 200 m per minute Maximum allowable diameter of roll at the inlet - 120 cm Maximum diameter of rolled strips - 120 cm Inside diameter of roll cores - 76 mm Motor power - 3 KW Installed electric power - 8 kVA Net weight - 3800 Kg
