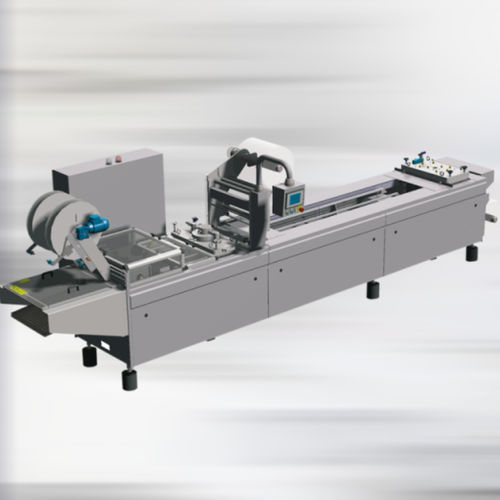

Industrial thermoforming machine MP420

medical

Thermoforming machine model MP420 (applications: industrial blister packaging, medical and pharmaceutical products…) Length of machine frame - from 4 to 7 m maximum Welding protection - As standard plexi (optional stainless steel) Standard width (mm) - No fixed width Adjustable min. / maxi. width (mm) - 220 / 620 Maximum depth supple (mm) - 70 / 110 / 130 Maximum depth stiff (mm) - 70 / 110 / 130 Maximum pitch - 450 (supple) / 400 (stiff) Diameter of lower supply - 500 mm aluminium Diameter of upper supply - 400 mm aluminium Use of stiff films - 600 µ Min. / maxi. pace of supple film (strokes per minute) - 10-17 strokes per minute Min. / maxi. pace of stiff film (strokes per minute) - 10-12 strokes per minute Length - 5 to 8 m Width - 1.1 m / 1.3 m Height - 1.8 m Water consumption - 200 l per hour Electricity consumption - 6-8 kW Air consumption - 50-60 Nm3 per hour
