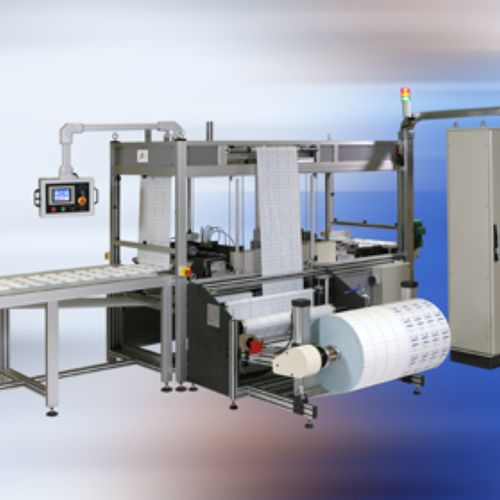

Pneumatic bagging machine MAB450

lineartablesealing

– Adjustment and control of longitudinal pneumatic sealing pressure, – Identifcation system for pre-printed paper, – Touch sensitive screen faciliting changes of sizes, – Outlet table. Packaging material - Cold sealable zoned paper Linear speed - Up to 60 meters per minute Pouches - Width: From 70 to 450 mm Length: Mini 90 mm / Maxi 300 mm Height: Maximum 12 mm Paper roll diameter - 600 mm Type of transmission - By servomoteurs Installed electric power - < 7 kVA Options - Faulty pouch detection / Ejection system (cells or caméras) Pneumatic loader of paper roll Use of white coated paper Ink jet marking Table with diverging belts Automatics stacking and counting of pouches.
