Medical equipment motor IA-C5BZA

brushless

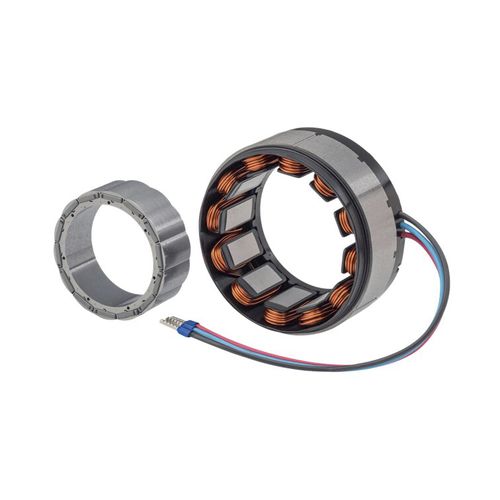

Frameless hollow-bore motor with low cogging design consisting of a stator and a rotor, designed for use in collaborative robots and products with built-in structures.This series is available in four different outputs and sizes. Suits a Wide Range of Applications The motors, consisting of the rotor and stator, are available in four different outputs (200-960 W @48 V) and sizes (outer diameter of the stator, 60-120 mm). Smaller, Lighter Products The motor simply consists of the rotor and stator for easy installation and product downsizing. Energy Saving Design Uniquely engineered magnetic circuit helps to sustain high energy efficiency over long operating periods. Smooth Movement Low cogging for smooth motion. Installation Notes: • Shafts, bearings and other parts needed for mounting the motor are not included. • Take précautions when installing the rotor into the stator to prevent contact with surrounding parts due to magnet attraction or repulsion. • Set the rotor/stator coaxially and ensure the gap between the rotor and stator (stack) is per the criteria as shown. • For more détails, instruction manuals can be downloaded from Mabuchi website.
