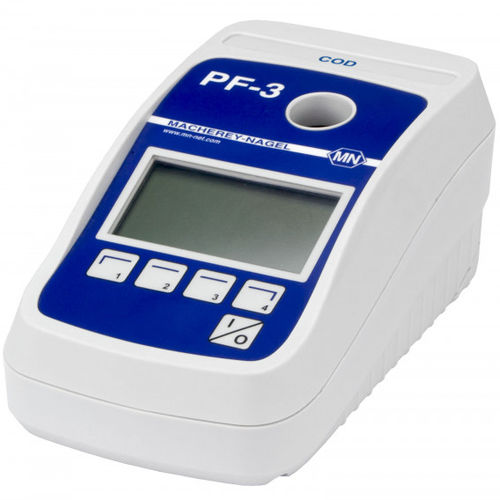

Compact photometer PF‑3 COD

The compact photometer PF‑3 COD is the smallest member of the MACHEREY‑NAGEL photometer family. The COD version is especially designed for the need of COD analysis. It supports measurements of most NANOCOLOR COD tube tests. The handy and compact but strong design makes this lightweight an ideal companion for mobile analysis. Type LED photometer with microprocessor control, self-test and auto calibration Light source LED Optical system LED + interference filters Wavelength 365 nm / 450 nm / 595 nm Wavelength accuracy ± 2 nm, bandwidth at half transmission 10 nm–12 nm Preprogrammed tests NANOCOLOR tube tests, VISOCOLOR ECO tests Cuvette slot Round tubes 16 mm OD External light Insensitive to external light, fast measurements without cuvette slot cover Data memory 50 measurements Display Backlit graphic display, 128 x 64 pixel Auto off Inactive or automatic shutdown after 5 min, 10 min, 15 min, 20 min Internal quality control With NANOCONTROL NANOCHECK 2.0 Operation Self-explanatory menu guidance, plastic foil keypad, test selection via parameter lists Language DE / EN / FR / ES / IT / HU / PL / PT / TR  Interfaces Mini-USB Update Free via internet / PC Operating range 10–40 °C, max. 80 % relative humidity (non-condensing) Power supply 3 AA batteries, rechargeable batteries, USB interface; optional internal accu-pack Housing Shock-resistant; waterproof and dustproof, according to IP 68 Dimensions 170 x 95 x 68 mm Weight 0.5 kg Warranty 2 Years CE certified Yes Scope of delivery Photometer, manual, batteries and certificate Hazardous material No
