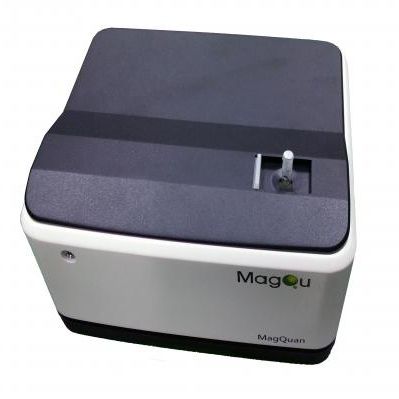

Magnetic concentration analyzer MagQuan

controllaboratorybenchtop

-Rapid measurement of magnetic concentration -Easy Operation -Computer control/analysis -USB connected to computer Description Currently the instruments used to measure the magnetic concentration are either of vibration sample magnetometer, SQUID magnetometer, or inductively coupled plasma-mass spectrometer. However, these analyzers are very expensive and high maintenance costs. We specifically developed this Magnetic Concentration Analyzer (MagQuan) to measure the magnetic concentration of samples within three minutes. MagQuan is very suitable for material development and quality control. The analyzer (MagQuan) obtains magnetic concentration of the sample by the measurement of alternative-current (AC) magnetization. Field frequency 20 kHz Field amplitude < 50 Gauss Sample volume/mass: 100 μl / 100 mg Detection time < 3 minutes Sensitivity 5 μg Fe (or 10-3 emu) Software establishment of standard curve analysis of magnetic concentration Applications: biological molecules/nucleic acid purification
