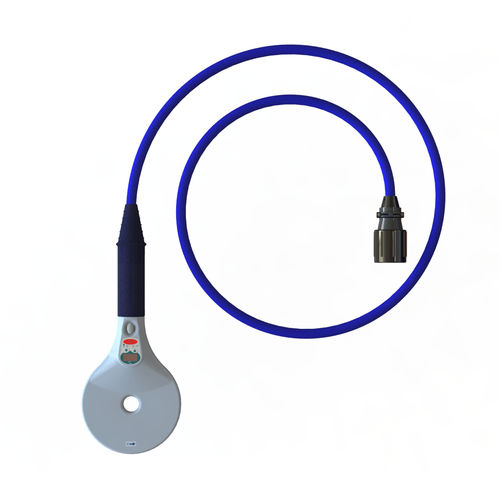

Single TMS coil 3192-00

This single 90mm remote coil produces a broad magnetic field that takes place directly under the windings, forming a ‘donut shaped’ field. Compared to standard 70mm double coils, this magnetic field is wider and can be slightly deeper, ideal for stimulating large peripheral nerves. The coil can be used on both sides for current reversal research. The remote-control functions allow for easy pulse triggering, arm/disarm, and intensity changes from the coil handle. Compatibility Rapid2 (Standard) Super Rapid2 Super Rapid2 Plus1 2002 BiStim2 Coil Cable Length 2m Weight 1.75kg InductanceA 23.47μH Users in the USA, The Magstim S90 Remote Coil is FDA 510(k) cleared with the Magstim Rapid² for the stimulation of peripheral nerves. All other uses including the use of this coil with the 200², the BiStim², and the Rapid² Plus¹ are considered investigational. In accordance with US federal regulations an IDE and/or IRB approval may be required.
