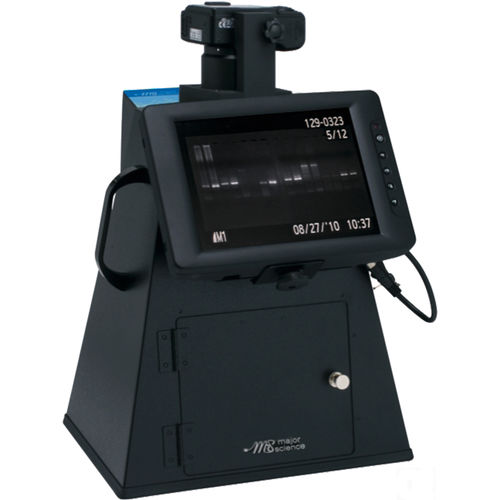

Gel documentation system with transilluminator DI series

with integrated camera

The Digimage System is a simple, compact gel documentation system with a rear digital control panel. It contains the Canon EOS M100, a digital camera with a superb resolution of 24.2 megapixels. The image is viewed from a large 8” TFT colorful screen with monitor purpose only, for a lab with limited space and low budget requirements, this gel imaging system is definitely your top choice since it can be operated without a computer. A variety of images can be captured including agarose and other fluorescent gels, colorimetric gels, autoradiography film, and blotting membranes. A safety switch is equipped to turn off the UV Transilluminator automatically when the front door is opened. Files can be saved in a variety of formats, including RAW format, for transfer to a computer for storage and analysis. Features 24.2 megapixel digital camera High resolution 8” TFT screen Digital control panel Compact chamber and lightweight Can be operated PC free Inner white light LED at two sides Safety door switch Optional gel analysis software package available Universal rated voltage: 100-240V~ Specification Multi-Power Source For camera, Inner light lamp, TFT monitor Inner White Light 2 white LED, 3 watt/LED Safety Device Safety door switch Dimension (WxLxH) 11.4"x13.3"x15.9" (290x339x403mm) Material Painted metal Rated Voltage 110/220V~, 50/60Hz, 1.6A Weight Approx. 12.9lb (5.8kg) Camera Adapter Aluminum DI Darkroom Dimension (WxLxH) 11.4"x13.3"x15.7" (290x339x398mm) Weight Approx. 11.9lb (5.4kg)
